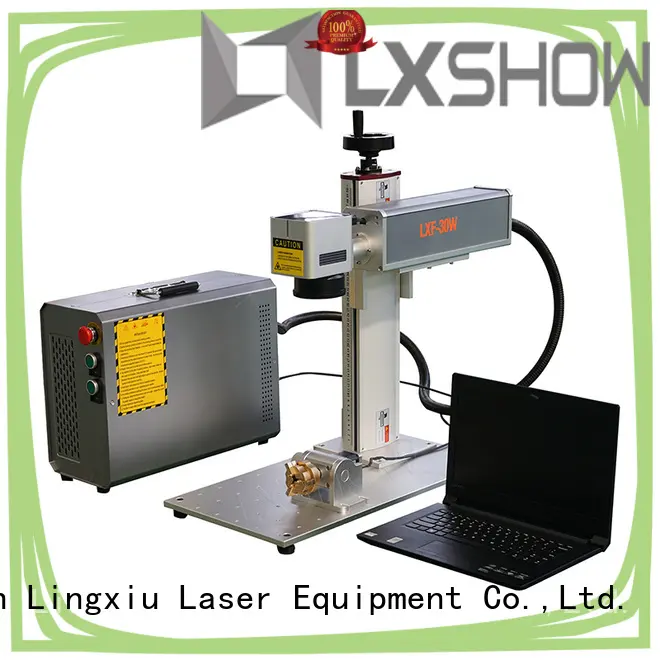

The fiber laser marking machine adopts fiber laser to output laser beam through high-speed galvanometer for laser marking with good wall-plug efficiency. It is suitable for marking metallic material and some non-metallic materials, especially for the application which has high demands on the fineness, precision and smoothness.
Features
1.The Fiber laser marking machine has good wall-plug efficiency.
2.Precision marking with super high fineness and 2540dpi resolution.
3.Air cooling system.
4.Compact design with small size.
5.Perfect output beam quality and high reliability.
6.No power coupling loss, reducing the operation cost.
7.Its laser is maintenance free with long service life, 100,000 hours no consumables.
Application
The fiber laser marking machine is widely used in integrated circuit, mobile phone, precision instrument, eyeglasses, clocks and watches, computer keyboard, jewelry, hardware products, knife tool, kitchen ware, auto parts, plastic products, plumbing fittings, PVC pipes, medical instruments, packaging bottles, sanitary ware etc.
Laser wavelength | 1064nm |
Min. character size | 0.1mm |
Marking field | 150mm*150mm |
Marking speed | 250 characters/s |
Repeat accuracy | ±0.001mm |
Applications:Plastic transparent buttons, IC chip, digital products components, precise machinery, diamond jewelry ,sanitary fittings, tools, watches, glasses, electric components, metal tools, phone components, car components, plastic products, medical device, construction materials and tube materials etc
Parameter
Item | Parameter name | Parameters |
Laser | Input power | 20W |
| Input laser beam | <1.8 |
Marking capacity | marking line depth | ≤2.2mm |
| Minimum focusing light point | 0.005mm |
| Minimum letter height | 0.15mm |
| Repeat accuracy | ±0.001mm |
| Max line marking speed | 12000nm/S |
| Marking format | Picture, word, bar, code, QRcode, date, classes, number, file etc |
| Standard marking range | 100mm×100mm |
| Optional marking range | 50×50 150×150 200×200(mm) |
Physical Characteristics | Whole power | ≤160W |
| Power supply | 220V±10%/50Hz |
| Cooling system | Air cooling |
| Laser module life | >100000hours |
Advantages:
1.Hight definition, resolution rate is 1 micron,it is over 10 times of traditional products.
2.Hight speed,it is over3-5 times of traditional products.
3.Stability,similar products can't compare with it.
4.Long life, it is over 10 times of traditional products.
