Global Premium Brand of Laser Equipment , Focus on High Precision Metal Cutting.

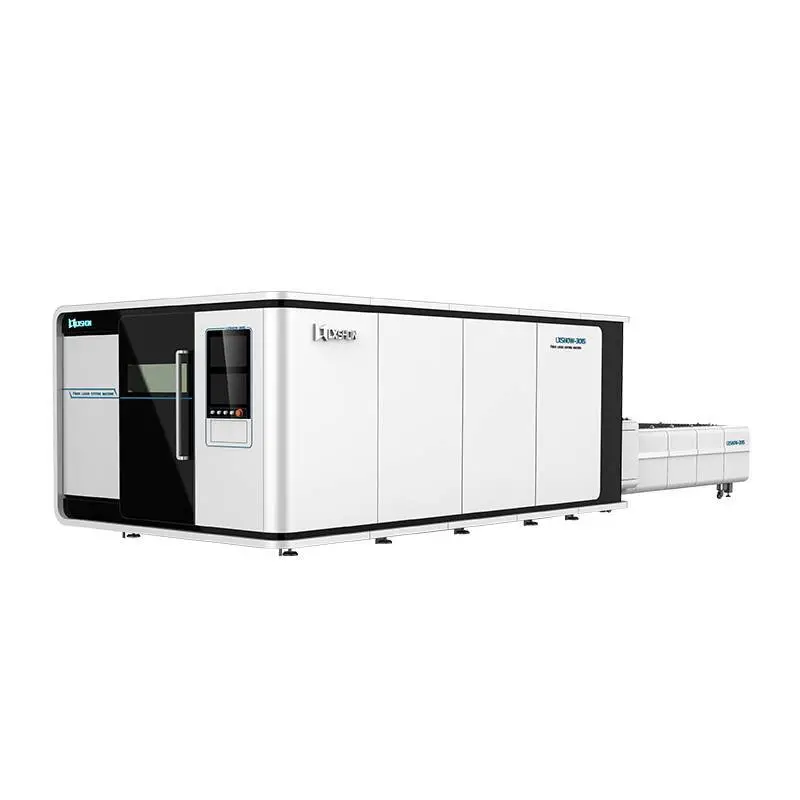

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover

LXF1530G

Warranty:

3 years

Shipping:

By sea/By air/By land

Payment Term:

T/T;Alibaba trade assurance;West Union;Paypal;L/C

Model Number:

LXF1530G

Machine Weight:

7000KG

Machine Size:

Exchange table Machine size: 5200*3000*2400mm Water chiller +Controller: 1830*920*2110mm

Lead time:

10-15 working days

FOB Reference Price Range USD:

20000-40000

Brand:

LXSHOW

APPLICATION AND SAMPLES

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 2 MACHINE INDICATE

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 4

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 5 MACHINE PARTS

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 7

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 8

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 9

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 10 APPLICATION AND SAMPLES

APPLICATION

Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 12

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 13

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 14

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 15 CHARACTURE

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 17

Excellent Path Quality

Smaller laser dot and high work efficiency, high quality.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 18

High Cutting Speed

Cutting speed is 2-3 times than same power CO2 laser cutting machine.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 19

Stable Running

Adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 20

High Efficiency

For photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 21

Low Cost

Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 22

Low Maintenance

Fiber line transmission no need reflect lens, save maintenance cost

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 23

Easy Operations

Fiber line transmission, no adjustment of optical path.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 24

Suitable For High Power

Such as 1500/2200/3300 and high power.

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 25 PRODUCT PARAMETER

Machine Name	1500W 2200W 3300W High Power Metal Plate Fiber Laser cutting machine LXF3015G
Model	LXF3015G
Laser machine cutting area	3000x1500mm (Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
Fiber Laser Power CO2 Laser Power	500w/750w/1000/1500/2200/3300/4000/ 6000/8000/12000/25000W
Laser wave length	1064nm
Transmission system	Gear + rails (we have standard brand,we can also produce as your requirements)
X.Y axis location accuracy	±0.01mm
X.Y axis repeat location accuracy	±0.01mm
X.Y axis max moving speed	30m/min
Max cutting speed	1--30m/min(it will according to metal material and laser power and machine configuration)
Cutting thickness	Detailed in the following cutting thickness
Application Material	Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
Advantages	>Excellent beam quality >Simple , compact, electrically and optically efficient >Compatibly powerful and reliable >Maintenance free >multilingual, more than 11 foreign languages >3 years warranty .
Gross weight	7500KG
Net weight	7250KG
Machine size	Exchange table Machine size: 520030002400mm Water chiller +Controller: 18309202110mm

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 27 PRODUCT SELECTION

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Carbon Steel (O₂)	1	7.0~8.0	7.0~9.0	7.0~11.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0	7.0~12.0
	2	4.0~5.0	5.0~6.0	5.0~6.5	5.0~6.5	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0	5.0~7.0
	3	2.0~2.5	2.5~3.0	2.8~3.8	3.0~4.6	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0	3.5~5.0
	4	1.5~2.0	2.0~2.4	2.5~3.2	2.8~4.0	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2	3.0~4.2
	5	1.2~1.5	1.5~1.8	1.8~2.5	2.2~3.2	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6	2.5~3.6
	6	1.0~1.4	1.4~1.6	1.6~2.2	2.0~2.8	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0	2.4~3.0
	8		1.0~1.2	1.1~1.5	1.4~2.0	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4	1.8~2.4
	10		0.75~0.85	1.0~1.2	1.1~1.4	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8	1.2~1.8
	12		0.6~0.7	0.9~1.0	0.9~1.2	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5	1.0~1.5
	16				0.6~0.75	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
	20					0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75	0.6~0.75
	22					0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65	0.5~0.65
	25					0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Stainless Steel (N₂)	1	10~12	15~18	10~15	35~50	45~55	45~55	45~55	45~55	45~55	45~55
	2	2~4.0	4.5~6.0	5.0~7.0	10~15	15~23	18~27	20~35	23~37	26~40	28~43
	3	0.7~2.0	2.0~2.4	3.0~4.0	5.0~7.0	7.0~11.0	10~15	15~20	19~24	23~28	27~32
	4		1.0~1.5	2.0~2.8	3.5~4.5	4.0~6.0	5.0~7.5	10~14	14~17	18~22	22~26
	5		0.75~0.85	1.2~1.7	1.8~2.5	2.5~4.0	4.0~5.0	8.0~12.0	11~14	14~17	16~18
	6			0.7~1.0	0.7~0.8	2.0~3.2	3.0~4.0	6.0~8.0	8.0~9.5	9.5~11.0	10.5~12.0
	8			0.5~0.7	0.5~0.6	1.2~1.8	1.5~2.6	3.5~4.0	5.0~5.5	6.5~7.0	7.5~8.0
	10					0.7~0.9	0.7~1.3	1.8~2.2	2.5~3.0	3.4~3.9	4.0~4.5
	12					0.3~0.4	0.4~0.6	1.2~1.5	1.8~2.1	2.6~3.1	3.3~3.6
	16						0.3~0.5	0.8~1.2	1.5~1.8	2.2~2.5	2.7~3.0
	20						0.3~0.5	0.6~0.8	1.0~1.3	1.7~2.0	2.2~2.5
	22							0.3~0.4	0.6~0.75	1.0~1.2	1.4~1.6
	25								0.3~0.5	0.4~0.6	0.6~0.8

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Aluminum (N₂)	1			10~15	30~45	30~38	35~40	45~55	45~55	45~55	45~55
	2			5.0~6.0	10~15	12~16	13~22	20~30	27~35	33~40	36~43
	3			2.5~3.5	5.0~7.0	6.5~8.0	7.0~13	13~18	15~18	18~22	23~26
	4			1.4~2.0	3.5~5.0	3.5~5.0	4.0~5.5	10~12	12~13.5	15~18	19~22
	5			0.8~1.0	2.0~3.0	2.5~3.5	3.4~4.0	5.0~8.0	9.0~12	14~16	17~19
	6			0.5~0.6	1.5~2.0	1.8~3.0	2.2~3.5	4.0~6.0	7.5~9.5	10~12.5	13~15
	8				0.5~0.6	0.9~1.3	0.9~1.6	2.0~3.0	4.0~4.8	5.8~6.5	6.8~7.2
	10					0.4~0.7	0.55~1.0	1.0~1.9	1.5~2.7	3.0~3.8	3.7~4.2
	12					0.3~0.45	0.4~0.6	0.8~1.4	1.6~1.9	2.4~2.7	3.3~3.6
	16						0.3~0.4	0.6~0.9	1.0~1.2	1.4~1.6	1.7~1.8
	20							0.4~0.6	0.8~0.9	1.0~1.2	1.2~1.6
	22								0.7~0.85	0.9~1.0	1.1~1.2
	25								0.35~0.45	0.6~0.7	0.8~0.9

Material	Thickness （mm）	500W	1000W	1500W	2000W	3000W	4000W	6000W	8000W	10000W	12000W
Material	Thickness （mm）	Cutting Speed(m/min)
Brass (N₂)	1			8.0~12	12~18	20~32	25~30	45~55	45~55	45~55	45~55
	2			3.5~5.0	6.0~8.5	9.0~11	10~13	25~35	27~35	33~40	36~43
	3			1.5~2.2	2.5~4.0	4.0~6.0	5.0~6.5	12~18	15~18	18~22	23~26
	4			1.0~1.2	1.5~1.8	3.0~4.5	3.0~5.2	8.0~10	12~13.5	15~18	19~22
	5			0.6~0.8	0.8~1.2	1.5~2.0	2.0~3.0	4.5~6.0	9.0~12	14~16	17~19
	6				0.4~0.5	1.0~1.6	1.4~2.0	3.0~4.0	7.5~9.5	10~12.5	13~15
	8					0.5~0.6	0.7~0.8	1.6~2.2	4.0~4.8	5.8~6.5	6.8~7.2
	10						0.2~0.3	0.8~1.2	1.5~2.7	3.0~3.8	3.7~4.2
	12								1.6~1.9	2.4~2.7	3.3~3.6

Big Power thick metal plate cnc fiber laser cutting machine 1530 fiber laser cutter 1540 1560 with exchange table and cover 29 COMPANY PROFILE

Jinan Lingxiu Laser

Is established in July 2004 owns more than 500 square meters of researching and office space, more than 32000 square meters factory All machines, passed the European Union CE authentication American FDA cerificate and are certied to ISO 9001. Products are sold to USA, Canada, Australia, Europe. South east Asia, Afica etc, more than 120 counties and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of

1.Fiber laser cutting machine/Laser marking/welding/CO2 laser engraving/cleaning machine. 2.Vibrating knife cutting machine.

We can also customized non-standard assist equipment as your detailed work reauirements.
