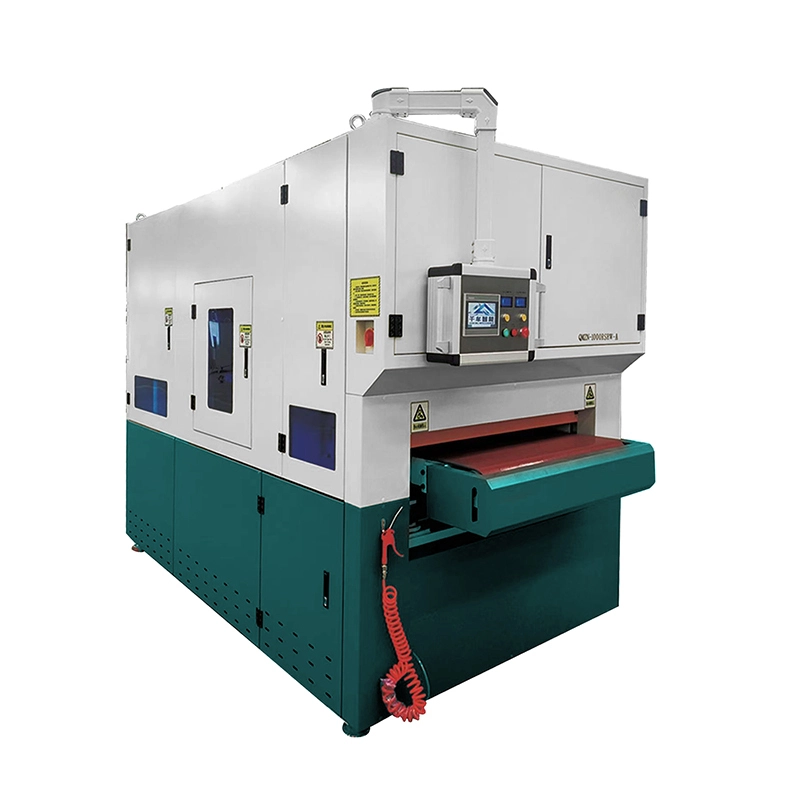

High Quality Deburring Machine LX-RSRW-A 1000 Series Double Belt Vacuum Adsorption Table with Chamfering and Wire Drawing Function
- Model：LX-RSRW-A 1000 Series
- Packing size：4000*1800*2300mm
- Weight：4000KG
- Brand：LXSHOW
- Warranty period: 3 years
- Delivery time：20-30 days
- Payment：Alibaba Trade Assurance, T/T, Western Union, L/C
- Supported languages: all languages
- Transportation method: By sea/ By land
- Packing Size：Standard Crate for export
- Price：$15800
LXSHOW Deburring Machine LX-RSRW-A Series Vacuum Adsorption Table
- Remove burrs：Chamfering can remove burrs on parts caused by machining, making the surface of parts smoother.
- Easy to assemble： Chamfering can make parts easier to insert and fix, especially during assembly, chamfering can reduce friction and resistance.
- Improve appearance：Chamfering can make the appearance of the product more beautiful, reduce sharp edges and corners, and improve the overall aesthetics of the product.
- Improve durability：In machining, chamfering can prevent scratches and wear and improve the durability of parts.
- Enhance safety： In architectural design, chamfering can reduce collision damage and improve safety.
Related Parameters
|
Model |
LX-1000RSRW-A |
|
Maximum processing width |
1000mm |
|
Processing thickness |
0.8-80mm |
|
Feeding speed (frequency conversion) |
1-5m/min |
|
Rubber roller diameter (eccentric) |
195mm |
|
Working air pressure |
≥0.55Mpa |
|
Total power of machine motor |
38KW+adsorption 15KW |
|
Polishing stick diameter |
240mm |
|
Dimensions |
4000*1800*2300mm |
|
Weight |
4000kg |
|
Platform |
marble |
|
Conveyor |
Composite new materials/rubber |
|
Control Panel |
PLC |
|
Default voltage |
3 phase 380v |
|
Sand rack |
Default double belt, customizable multiple belts |
Control Panel
♦ The touch screen adopts Delta PLC control system panel.With simple and clear set reset control buttons,complete functions.Sample clear and easy operation
Universal Roller Brush
♦ By alternately rotating and spinning the roller brush, the sand belt roller brush can grind the workpiece without dead corners, thereby achieving deburring and fillet machining
Convey Belt
♦The conveyor belt supports two types of conveying and feeding strong permanent magnet adsorption and vacuum negative pressure adsorption
Cunvey Motor
♦ The speed of the sanding machine can be aclusteg according to the beeds of processing the board,marking the sanding effect better.
Double sand Belts
♦The equipment is equipped with two sets of wide sanding belt mechanisms,which rotate at high speed to remove burrs,oxide scales,polishing,etc.On the surface the workpiece.
Product Application
In machining, deburring and chamfering are usually performed simultaneously. This combination of processes not only reduces the difficulty during assembly, but also improves the overall quality of the product. For example, in metal machining, due to the complex and varied shapes of parts, there are many challenges in the chamfering and deburring process, which requires professional tools and technical support.
