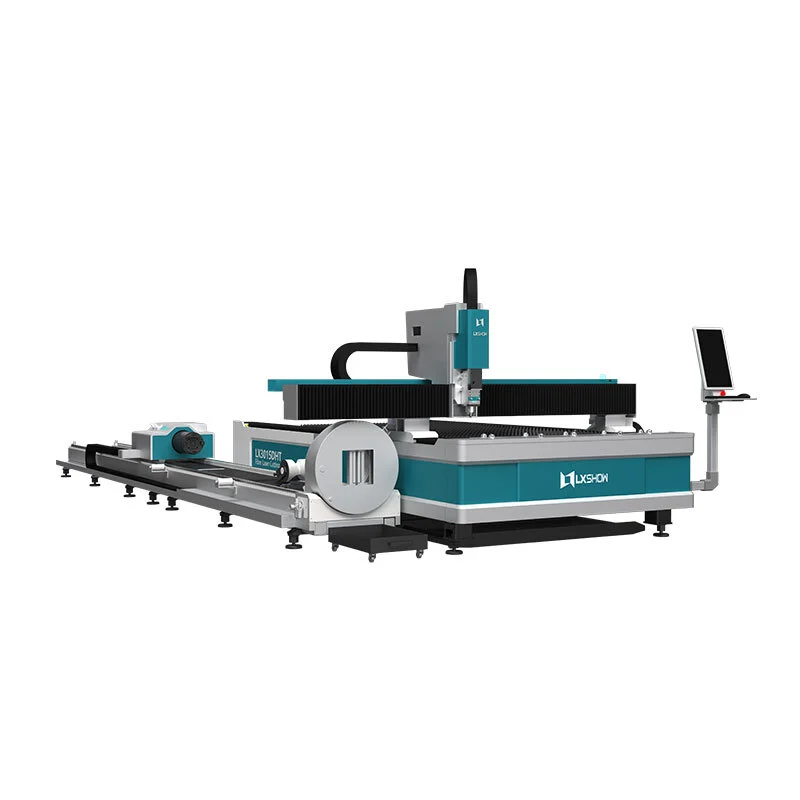

3015DHT Tube and Sheet Fiber Laser Cutting Machine
Model Number:LX3015DHT
Power：1000W-30000W
Machine Size:8145*4771*2005mm(About)
Rotary size:8000*1600*1150mm
Machine size(without rotary):4160*2200*1980mm
Machine weight:4000KG(About)
Brand:LXSHOW
Warranty:3 years
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Shipping:By sea/By land
Power：1000W-30000W
Machine Size:8145*4771*2005mm(About)
Rotary size:8000*1600*1150mm
Machine size(without rotary):4160*2200*1980mm
Machine weight:4000KG(About)
Brand:LXSHOW
Warranty:3 years
Lead time:10-25 working days
Payment Term:T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Shipping:By sea/By land
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
|
Model |
LX3015DHT Fiber laser cutting machine |
|
Working Area |
1500*3000mm |
|
Laser Power |
Optional Power :1000W-30000W |
|
Laser Wave Length |
1064nm |
|
Working Table |
Sawtooth |
|
Maximum Idle Running Speed |
120m/min |
|
Maximum acceleration |
1.2G |
|
Position Accuracy |
±0.02mm/m |
|
Repeat Positional Accuracy |
± 0.01mm |
|
Metal style |
Metal sheet and tube |
|
Position Type |
red dot |
|
Working Voltage |
380V /50Hz |
|
Auxiliary Gas |
oxygen,nitrogen,air |
|
Working life of fiber module |
More than 100000 hours |
|
Work Environment |
0-45°C, Moisture 45-85% |
- Heavy duty tube welding bed, with heavy weight, low center of gravity, convenient feeding metal materials and stable operation.
- The bed is protected by fire-resistant bricks to prevent the bed from being deformed by heat.
- Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.
- Rotary Length: 6m standard,8m and other size can be customized.
- Rotary Diameter: 160/220mm is standard. Other size can be customized.
- Chuck: Both pneumatic control
- The platform frame adopts a grouped design to improve the overall load-bearing capacity.
- Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
- It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
- It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
- The Y-axis cover is equipped with stainless steel armor protection as standard to prevent burn and improve the service life of the organ cover.
- The diameter 220mm large dust removal duct ensures the dust removal effect.
- Gear is equipped with felt wheel automatic lubrication as standard, which can fully lubricate the gear, improve gear’s service life and prevent the accumulation of lubrication oil, which may cause fire hazards.
