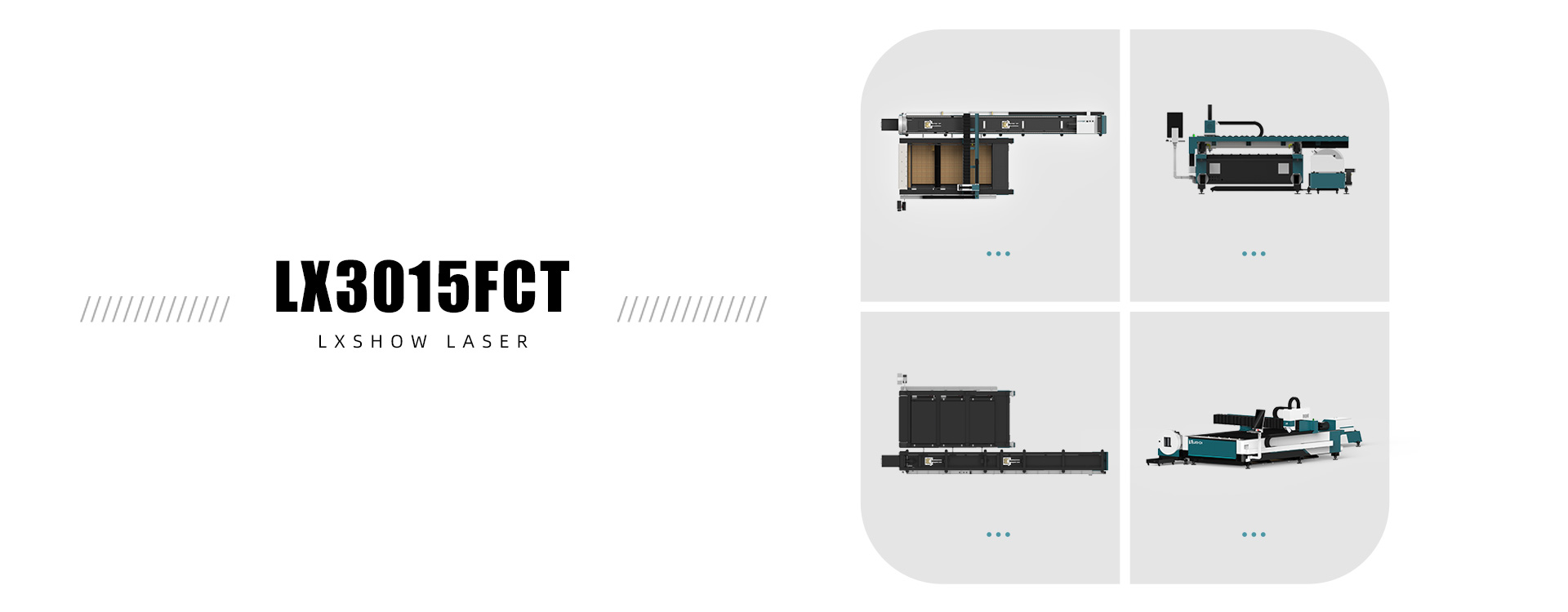

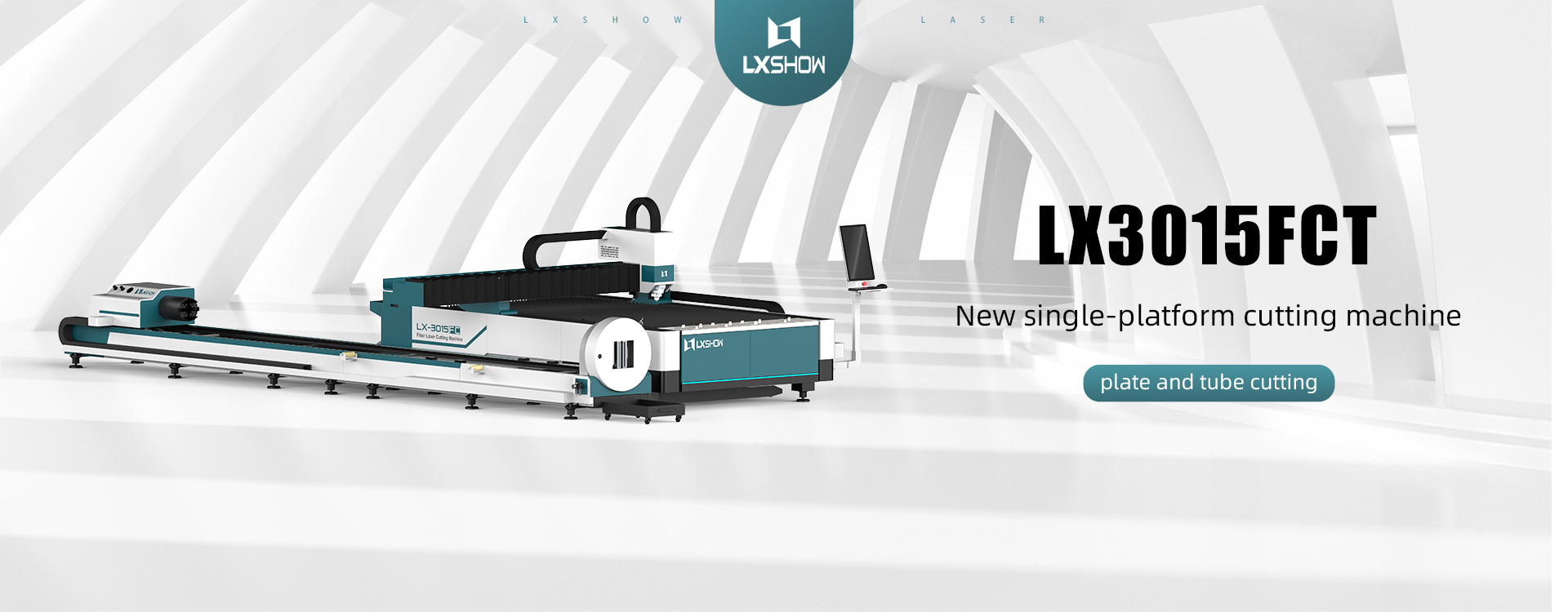

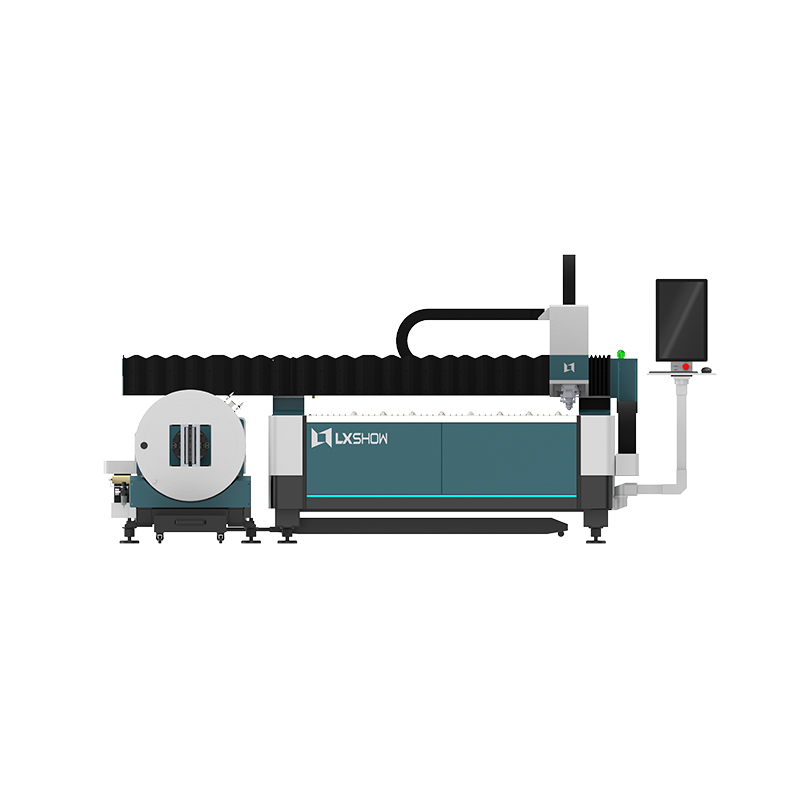

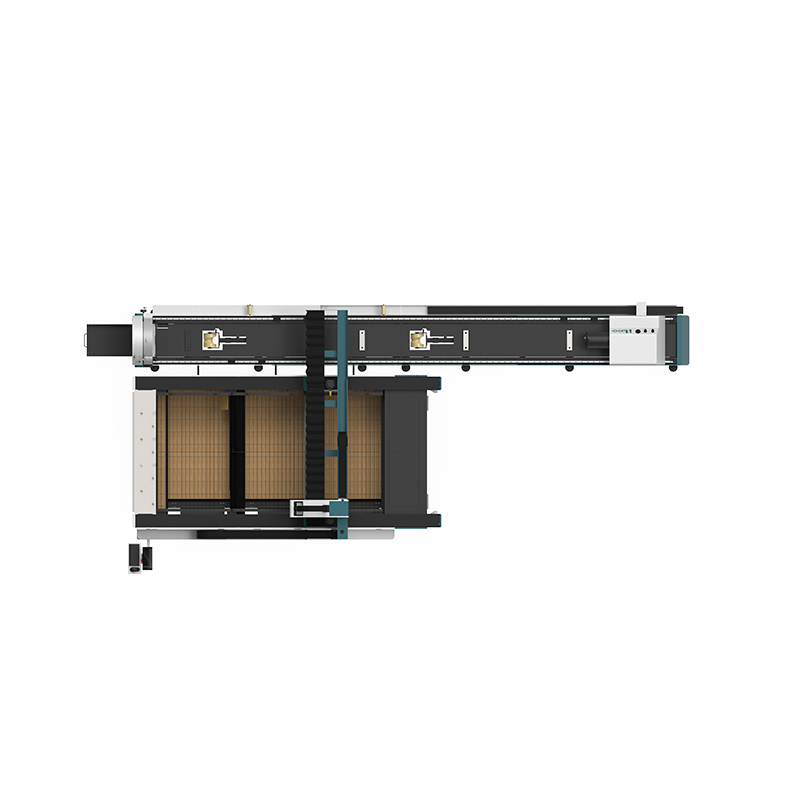

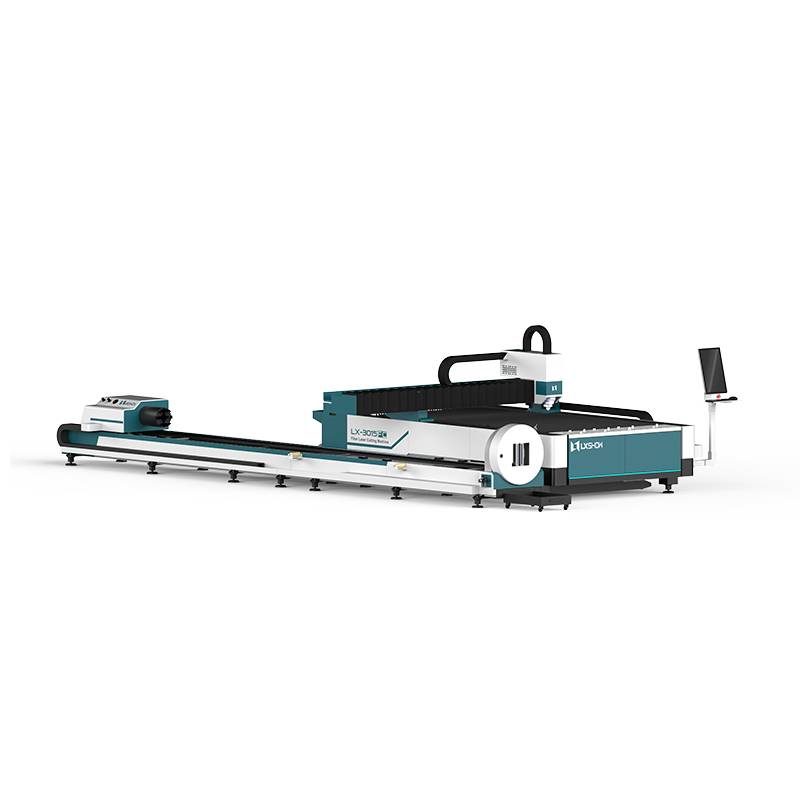

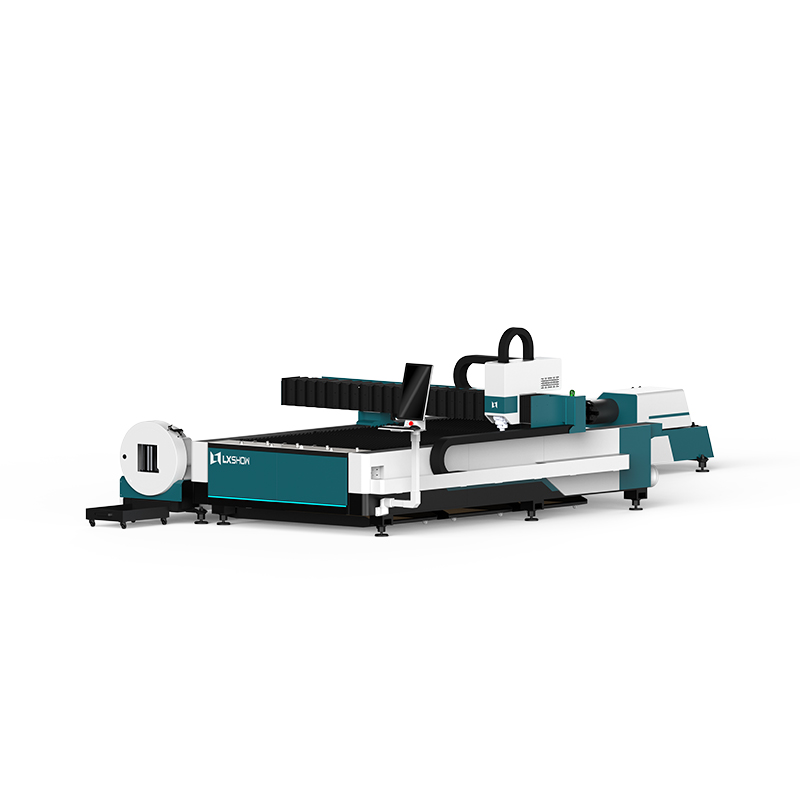

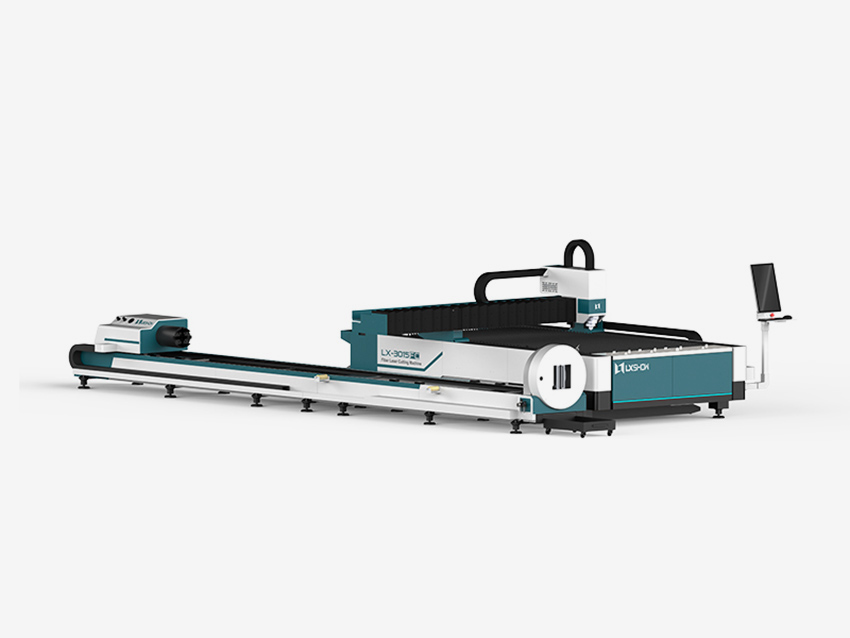

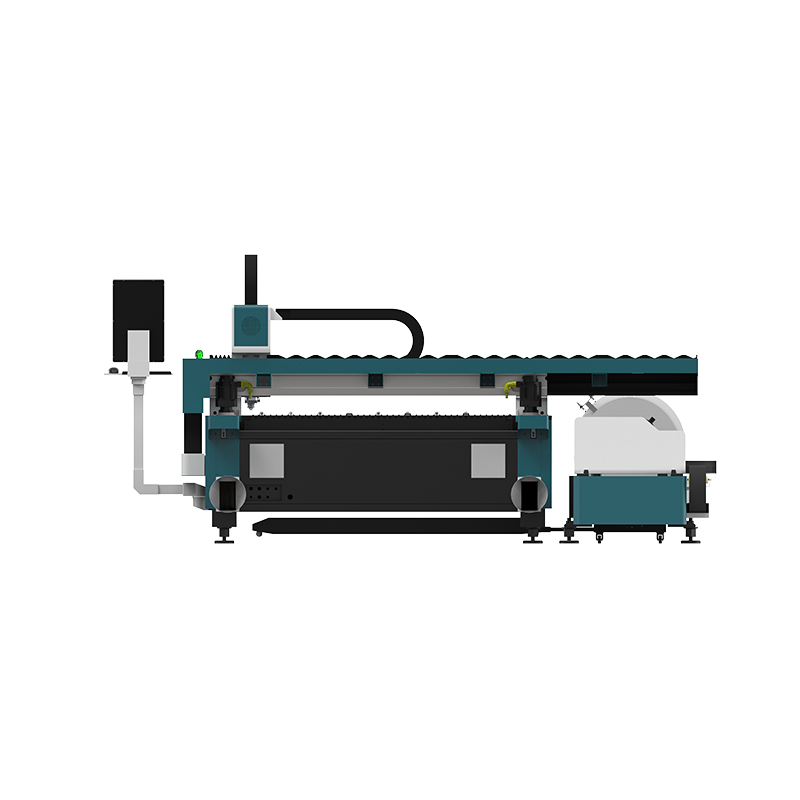

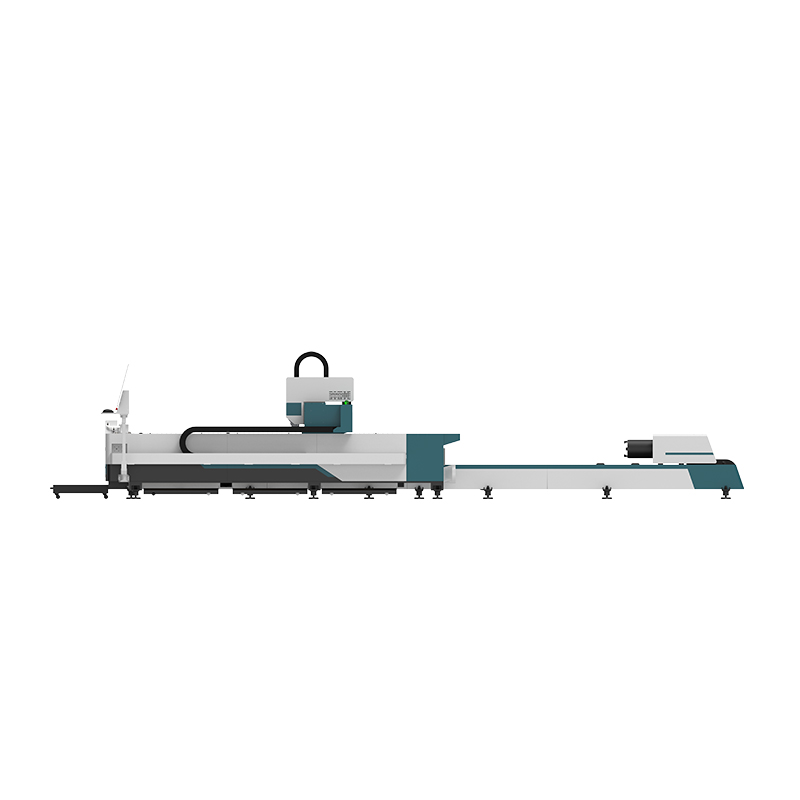

2024 New! LX3015FCT Single-platform Laser Matal Sheet and Tube Cutting Machine
5.0
Warranty:
3 years
Shipping:
By sea / by land
Payment Term:
T/T;Alibabatradeassurance;WestUnion;Paypal;L/C
Model Number:
LX3015FCT
Machine Weight:
4200Kg
Machine Size:
4160*2200*1980 mm
Lead time:
25-30 working days
Brand:
LXSHOW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Working Area
3000*1500mm
Work Environment
0-45℃，Moisture 45-85%
Voltage
380V 50/60 HZ
Repeat Positional Accuracy
±0.01mm
Position Accuracy
±0.02mm/m
Laser wavelength
1064nm
Laser Wave Length
1064nm
Graphic Format Supported
AI/BMP/DST/ DWG/DXF/PLT/LAS/DXP/ Other
Cooling Mode
Water cooling
| Model | LX3015FCT |
| Cutting working area | 3000*1500mm |
| Laser Generator | Raycus / IPG /MAX |
| Transmission system | Gear + rails |
| Fiber Laser Power | 1000-3000w，6000w, 12000w |
| X.Y axis location accuracy | ±0.01mm |
| X.Y axis repeat location accuracy | ±0.01mm |
| X.Y axis max moving speed | 120m/min |
| Laser wave length | 1064nm |
| Machine Warranty | 3 years |
